The Piezo Alert is an advanced electronic audible signal device that emits a compelling sound with minimum current draw. This solid state device operates from as little as 3VDC to as much as 28VDC and is rated at 20mA. Sound output is proportional to input voltages and ranges from a minimum of 68dB to over 100dB at 28VDC at 1 ft. The piezo electronic contact points give it high reliability and an exceptional long life. The piezo alert signal operates in free air only. It is not compatible with under water applications. The recommended operating range is from -13°F to 158°F (-25°C to 70°C). This UL recognized Piezo alert is available in two models: PAL-328N and PAL-328. Both models have a black finish.
Compelling sound on minimum current
Operates on 3V DC - 28V DC
High reliability and exceptional long life
Mulit-functional mounting method
Main Features
Compelling sound on minimum current
High reliability and exceptional long life
Mulit-functional mounting method
General Information

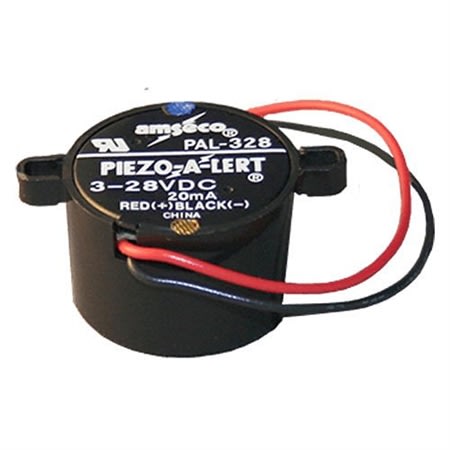

Name: Potter PAL-328N Electronic Piezo Alert Buzzer with Nut
Category: Potter Electric Signal, LLC, Intrusion, Security Sirens & Strobes, Sounders
UPC Code: 791438100096
Country of Origin: China. Country of origin is subject to change.
