If you need to install readers without dragging cable, if you are dealing with damaged conduit, or if the reader needs to connect over city streets, parking lots, or railroad tracks, use the SPX-5631 Wireless Wiegand Extender. The RF Suprex now supports OSDP readers connected to OSDP controllers, Wiegand readers connected to Wiegand controllers, or a combined OSDP/Wiegand system.
Main Features
Now supports OSDP, Wiegand, Wiegand keypad, Strobed/Magstripe, and unsupervised F/2F interfaces
Wireless 2.4GH using IEEE 802.15.4 protocol
1-mile / 1.6 km outdoor range* with F-style chip antenna (omnidirectional; units do not have to directly face each other) * with line of sight, depending on environment
Supports 4-248 bits of credential data
Supports 2 readers’ LED and auxiliary digital I/O
2 dry contact relay outputs on Central Unit
2 dry contact relay outputs on Remote Unit
Weather-resistant ABS IP65 enclosure
In Wiegand mode, connect up to 7 additional readers over the same wireless connection using EXP-2000 Expansion pairs (NOTE: EXP-2000s are not supported in OSDP mode.)
Made in the USA with 40+ years of expertise. Lifetime warranty (product registration required) and in-house tech support.
General Information

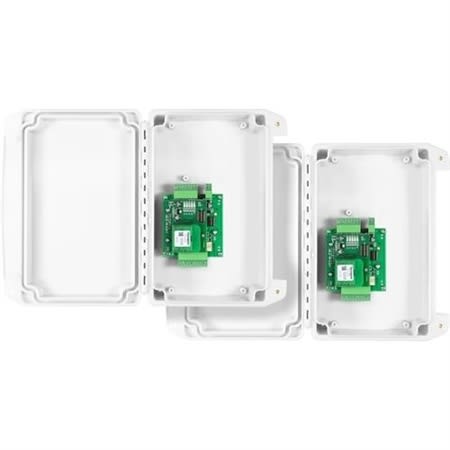

Name: Cypress SPX-5631 Wireless Suprex OSDP and Wiegand Extender for OSDP, 2.4 GHz Wireless Connection, 1 mile Range, Pair of 2 Outdoor-Rated Units in Box
Category: Cypress, Access Control, Keypads & Readers, Reader Extenders
UPC Code: 816684008115
Country of Origin: United States. Country of origin is subject to change.
