ProdataKey’s Red Readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red Readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.
Main Features
Read Range 125 kHz up to 4”
Output OSDP and Wiegand protocol
Encryption MIFARE DESFire EV2
Cable Distance Wiegand 500’ (22AWG)
Protection Rating IP55
Power 5 - 16V DC (Linear power supply recommended)
Mullion Dimensions 1.7” x 5.1” x 0.71”
Keypad and Single Gang Dimensions 3.25 x 5.1 x 0.71
General Information

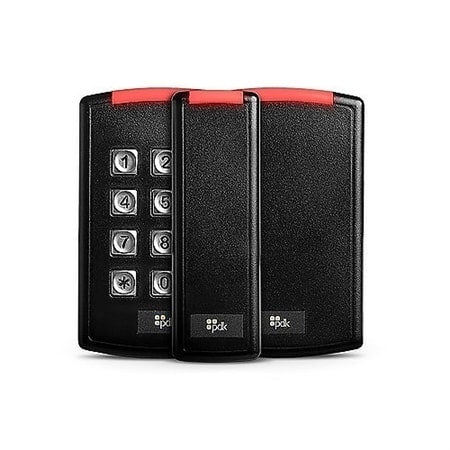

Name: ProdataKey RMPB Red Mullion Reader, Multi-Technology, High-Security (13.56 MHz), Prox (125 KHz), Mobile (BLE), OSDP, Weigand
Category: ProdataKey, Access Control, Keypads & Readers, Smart Readers
UPC Code: 850016583758
Country of Origin: . Country of origin is subject to change.
