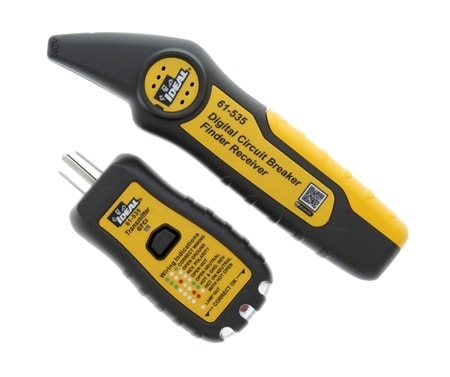

61-535 Automatic Circuit Breaker Finder w/ GFCI Transmitter

120V AC Circuit Breaker Finder w/Flashlight, NCVT & GFCI CAT II 150V, Quickly and Easily Identifies Circuit Breakers/Fuses Without Disrupting Power On Energized 120V AC Circuits, Clear Visual and Audible Indicators (Audible Can Be Muted), NCVT in Receiver Tip Indicates Presence of AC Voltage Between 80-300V AC, Flashlight in Receiver Operates Independently of the Tester Functions and Can Be Used to Illuminate Work Area, Transmitter Tests Outlet Wiring Configurations (Indicated Via Green/Red LEDs) and Tests GFCIs

The IDEAL 61-535 is a 120V AC Circuit Breaker Finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The Transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated Green and Red LED s and contains a GFCI Trip Tester. The receiver reads the transmitter s signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (60 - 600 V AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
