The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
Options
TS-14R with red mushroom push button
TS-14N with switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
TS-14NR mounted on narrow wall plate with red push button
TS-14302 mounted on weather resistant plate with 302 stainless steel finish
Finishes: multiple plate finishes available
Custom screening available
Specifications
Certifications & Listings: UL 294 listed
Electrical:
One N/O and one N/C contact pair
Contacts rated 10A at 120 VDC
Switch depth behind plate: 2-1/4"
Switch time repeatable +/- 10%
Switch terminated with 10” colored leads
Operating Temperature:+15 to 120F (-9 to 49C)
Main Features
Switch mounted on single gang Wall plate with 430 stainless steel finish
Plate screened “PUSH TO EXIT” for easy to follow egress instructions
Pneumatic time delay is adjustable 2 to 60 seconds
Labeled "PUSH TO EXIT"
Adjustable time range 2 to 60 seconds
General Information

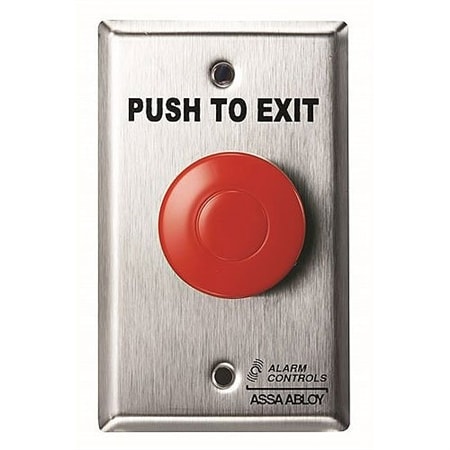

Name: Alarm Controls TS-14R Request to Exit Button with Pneumatic Timer, 1-1/2" Red Push Button, 430 Stainless Steel
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Door Release Buttons
UPC Code: 604840234566
Country of Origin: United States. Country of origin is subject to change.
