When unauthorized egress is initiated, the Mini Exit Check delays egress through the door for 15 seconds. Meanwhile, the person exiting must wait while personnel or security respond. The door unlocks after 15 seconds have elapsed, permitting egress. A signal from the fire/life safety system will release the lock for uninhibited egress in an emergency.
Main Features
- 650 lbs Holding Force
- Subdued alarm with 2 distinct tones: Alarm activation - intermittent, Door release - continuous
- Choice of activation trigger: Door movement Latching exit device with switch kit Non-latching REX bar
- Self-aligning and vandal resistant proximity sensor trigger
- DIP Switch selectable Door Prop activation feature
- DIP Switch selectable REX on Reset input. Allows single input from Keypad or Card Reader to REX and Reset the 1581S
- 5 foot cable
General Information

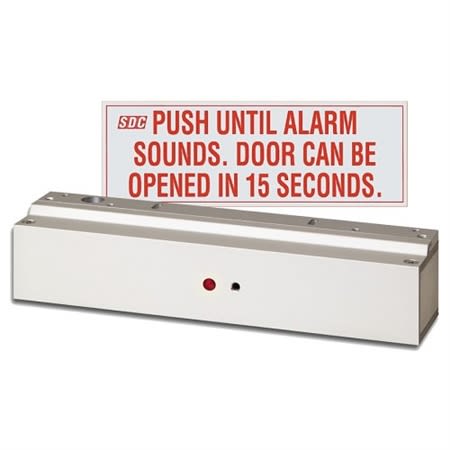

Name: SDC 1581SNDV 1581S Series Mini Integrated Delayed Egress Lock, NFPA 101, Fixed 15-Second Egress Delay Dull Aluminum
Category: Security Door Controls, Access Control, Locking Devices, Magnetic Locks
UPC Code: 712905123905
Country of Origin: United States. Country of origin is subject to change.
