Ideal for exterior doors, this kit provides an increased level of security by preventing lock wires from being in contact with the unsecure side of a door. Required for magnetic lock installations powered via POE, this unit is powered by ISONAS reader controllers and requires no additional power source. The unit is rated at 3 amps at 12v DC.
Main Features
- Durable plastic enclosure
- Polycarbonate blend, UV stabilized
- Potted for greater weather resistance
- Powered by ISONAS Reader-Controller; no additional power required
- Rated for 3 amps at 12v DC
- Proprietary encrypted serial data
- 2 sets of terminal blocks for easy installation
- Two LED indicators
- Required for magnetic lock installations powered via PoE
- Dimensions: 2 ¾" X 1 ¼" X ¾"
General Information

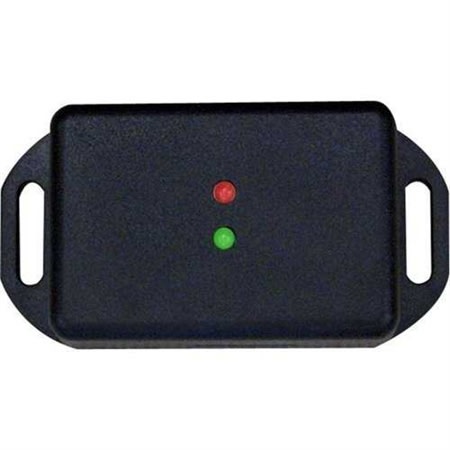

Name: ISONAS ACC-EDK-3A Advanced Security Module Exterior Doors
Category: ISONAS, Access Control, Access Control Panels & Accessories, Pedestals & Mounts, Mounting Accessories, Control Panel Modules
UPC Code: 685867919209
Country of Origin: United States. Country of origin is subject to change.
