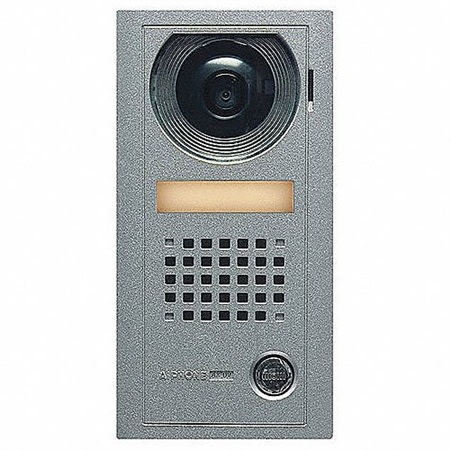

The AX-DV is a vandal-resistant, surface mount door station used with the AX open voice, color video entry series. The unit mounts directly to wall surface connects to the AX CCU using CAT-5e cable, it’s faceplate is cast aluminum and the camera is protected with a clear polycarbonate lens cover. The AX-DV features a color CCD camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.
Main Features
Cat5e wired to central exchange unit
Polycarbonate lens cover
Fixed camera provides clear video
LED illumination automatically turns on in low light conditions
Communication: Hands-free
CameraType: 1/4" CCD
Area View: 2'1" vertical x 3'1" horizontal at 2"
Protection Rating: IP43
Temperature Rating:14 ~ 14F (-1~6C)
Material: Aluminum die-cast cover
General Information
Name: Aiphone AX-DV Surface Mount Video Door Station for use with AX Series
Category: Aiphone, Communications, Intercoms & Telephone Entry, Intercom Door Stations
UPC Code: 4968249415244
Country of Origin: Thailand. Country of origin is subject to change.
