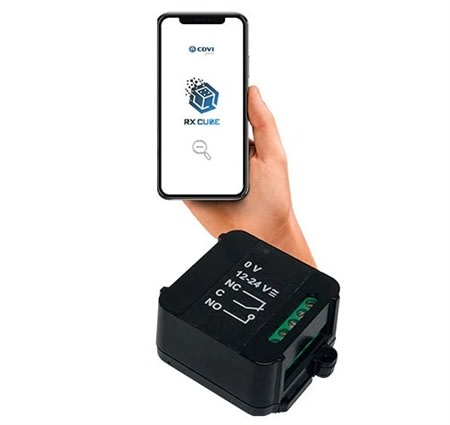

The receiver ?RXCUBE? is a superheterodyne radio receiver operating at 433,92 MHz in AM/ASK demodulation. It is compatible with the full range of remote controls Erone and RADIUM that use the Keeloq? Hopping code security protocol. This receiver can be programmed only via Bluetooth using set-up and control that can be done only using the app: ?RX Cube? on a Smartphone (iOS or Android). Power supply 12-24 V ac/dc auto-detect.
Product Specification :
- Carrier frequency : 433,92 MHz - AM/ASK
- Input sensitivity : 50 Ohms
- Power supply : 12 - 24V AC/dc ( auto-detect)
- Max switching power : Contact NO 10 A @ (30 Vdc), Contact NC 6 A @ (30 Vdc)
- Relay number : 1
- Operating modes : Pulse / Latch / Timed
- Release time (Timed) : from 1 sec. to 23h:59m:59s
- Contacts : C-NO-NC
- Memory capacity : 250 user codes
- Communication w/mobile phone : Bluetooth BLE 4.2
