The 2202 series overhead door magnetic contact is for use in the rigorous environments of commercial and industrial applications. The floor mount units are constructed with a low-profile, heavy cast aluminum housing. The reed switch assembly is fully encased in GE Security's exclusive polyurethane potting material to prevent damage due to moisture or humidity.
A wide operating gap of up to 3 inches makes installation easy and helps prevent false alarms caused by loose-fitting doors. The contacts are available with a universal-style magnet that allows for greater installation flexibility.
What’s Included
2204AU-L Magnetic Contact
Mounting Hardware
Main Features
Miniature, low profile design
Stainless steel armored cable for added security, reliability
Wide working gap for overhead doors
Aluminum bar stock resists corrosion in harsh environments
Small size less likely to be damaged by forklifts
Mounting hardware included
General Information

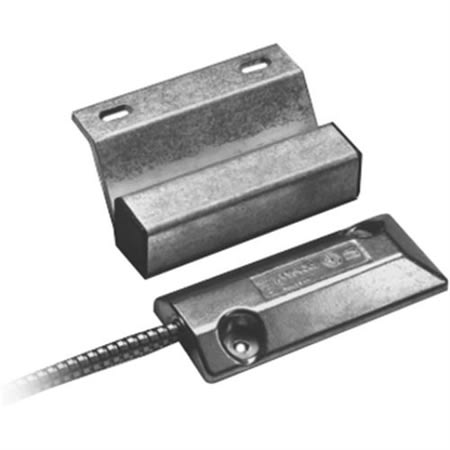

Name: Edwards Signaling Magnetic Contact, Overhead Door, Surface/Floor Mount, 30V/0.25A Max, Max 3" Gap, 18" Armored Leads, SPDT
Category: Edwards Signaling, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 0461880253816
Country of Origin: China. Country of origin is subject to change.
