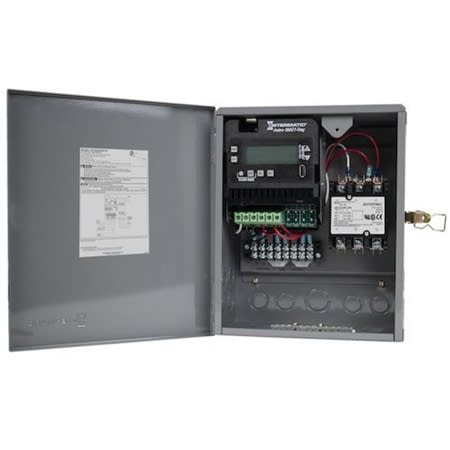

ETCB28253PCR Time Switch, 7 Day, Astronomic, 60 Amp, 120 Volt

Time Switch, 7 Day, Astronomic, 60 Amp 3-Pole Contactor, 60 Amp, 120 Volt

The ETCB28253PCR Electronic All-Purpose Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, as well as a 60 Amp contactor and inputs for overrides and surge protective devices.

Product Specification :

• Up to 96 Scheduling set points
• 7-Day/365 Day Astronomic Scheduling
• USB port for backing up or transferring schedules
• Input for optional "Timed" photo control override
• Built-in 60 A 3-Pole contactor for more robust loads
• Up to 50 Holiday/Exception Period set points
• Terminals for adding Surge Protection
• Input for other types of switches/sensors
• Requires 120 VAC 60 Hz for powering the control
• 100-hour supercapacitor eliminates the need for battery replacement
