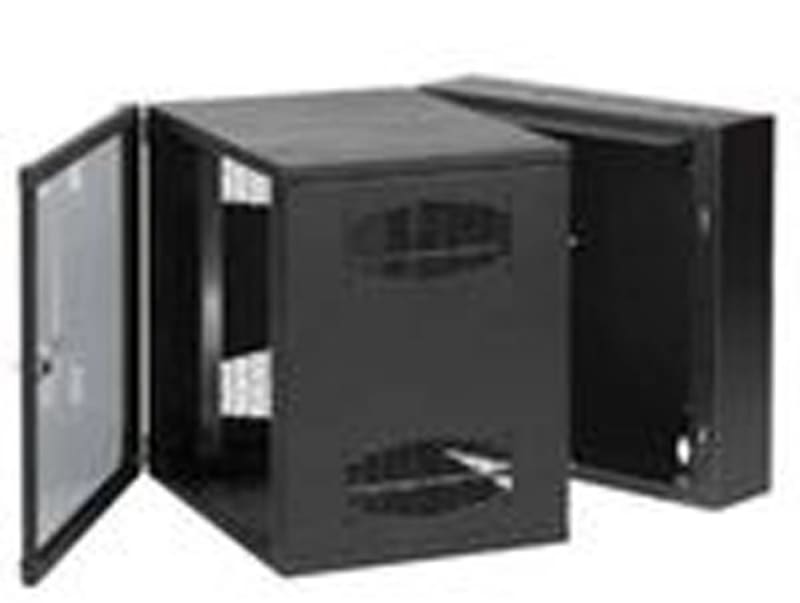

The Hoffman EWMW242425 ACCESSPLUS Double-Hinge Enclosure is a durable and versatile solution for housing electrical components and equipment. Constructed from high-quality black steel, this enclosure measures 24" x 24" x 25" and features a double-hinge design for easy access to the interior, facilitating quick installation and maintenance. With a NEMA Type 1 rating, it is designed for indoor use in dry environments, providing protection against dust and other contaminants. This enclosure is ideal for use in various industrial and commercial applications where secure housing and accessibility are required.
Product Specification
- Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
- Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
- Center section easily removed from rear section; tool-less one person installation possible
- Self-grounding, plated steel rack angles fully adjustable within center section
- Wall section provides cable entry and cable management with knockouts or gland plates
- Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
- Self-locking center-to-wall section latches in two locations
- Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
- Vented sides provide cross flow ventilation to improve heat dissipation
- Vertical cable manager included in 28-in.-wide models
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
