The Honeywell Ademco 4208SN Remote Point Module (RPM) is an eight-Zone expander that provides an extra 8 Zones for Vista Control Panels that support V-Plex polling loop devices.
Main Features
Can be used on controls that support up to 250 Zones
Can be optionally powered from an external DC power supply to reduce the amount of current draw from the polling loop
Uniquely identified eight EOLR supervised Zones (all Zones use 10K resistors, supplied)
Each Zone is identified by a unique serial number, which is assigned via On-Board DIP switches
Detects faults on all Zones within 400ms of occurence
Loops A and B can be programmed for fast (10ms) response
Provides cover tamper protection, which may be enabled or disabled via on board DIP switches
General Information

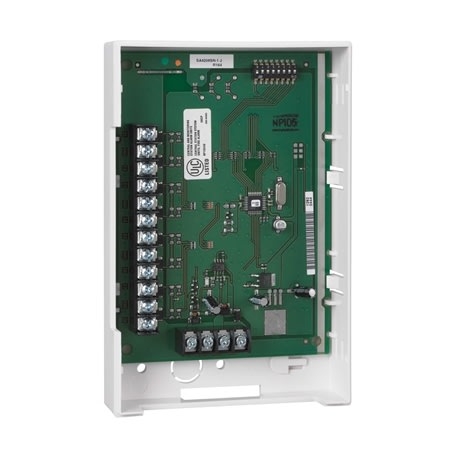

Name: Honeywell 4208SN V-Plex 8-Zone Interface Module
Category: Honeywell Commercial Security, Intrusion, Alarm Control Panels & Keypads, Control Panel Modules
Country of Origin: . Country of origin is subject to change.
