The Securitron AQL B100 terminal block output is Class 2 power limited and jumper selectable for either a fixed 12 VDC or an adjustable range between 5-18 VDC at 4 Amps maximum current. Multiple Securitron B100's can be added to a system for virtually unlimited voltage combinations.
Primary power for the Securitron B100 is derived from a Securitron AQLpower supply. The Securitron B100 steps the AQL voltage down to the user defined range (typically 12 VDC).
Product Features
Provides the odd voltage required to power modems, routers and other IT or similar devices (ie., 5 V, 9 V, 15 V etc)
Snap-in style mounting standoffs with fast-on connect cables for easy field installation
Eliminates need for a 12 V battery set in dual voltage access power systems
Small size allows for dual voltage in a smaller enclosure
Jumper selectable output voltage: 12 VDC fixed | 5 to 18 VDC user adjustable
4 Amps current at any selected voltage
Overload protection
Short circuit protection
Over temperature protection
Fault report to host power supply on abnormal operation, voltage loss and overcurrent
Visual indicators for DC in/DC out and fault
Input and output LEDs indicate voltage by color (Green: <15 V | Blue: > 15 V)
Adds an economical secondary 12 V output to any 24 VDC system
Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service life and lover MTBF
MagnaCare lifetime replacement, no-fault, no questions asked warranty
Main Features
Provides the odd voltage required to power modems, routers and other IT or similar devices (ie., 5 V, 9 V, 15 V etc)
Snap-in style mounting standoffs with fast-on connect cables for easy field installation
Eliminates need for a 12 V battery set in dual voltage access power systems
Small size allows for dual voltage in a smaller enclosure
Jumper selectable output voltage: 12 VDC fixed | 5 to 18 VDC user adjustable
4 Amps current at any selected voltage
Overload protection
Short circuit protection
Over temperature protection
Fault report to host power supply on abnormal operation, voltage loss and overcurrent
General Information

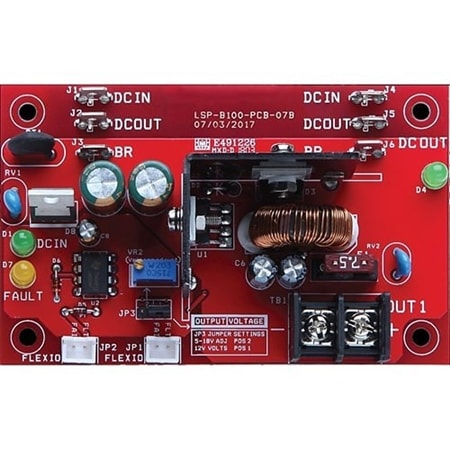

Name: Securitron B100 Secondary Voltage Module
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Management, Power Distribution Modules
UPC Code: 784607048824
Country of Origin: United States. Country of origin is subject to change.
