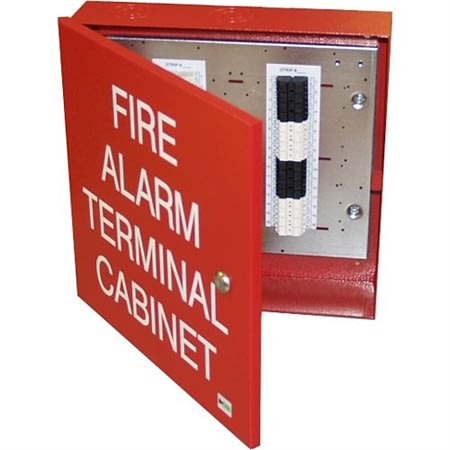

The IF2 32 point "FIRE ALARM TERMINAL CABINET" is designed to enhance your fire alarm systems. Ideally suited for trouble shooting and maintenance with easy identification of system wiring.
This surface mount cabinet is fabricated from 16 gauge steel with a durable, baked on, red textured powder coat finish. White 2" highly visible lettering and a "lift-a-way" hinged door contribute to fast cabinet location and access. The door incorporates a high security CAT 30 keyed door lock.
Main Features
- 16 gauge steel construction
- Durable red or black powder coat
- Standard EMT knockouts
- Liftaway hinge
- Interior labeling of terminal strips with field identification labels inside cove
- Terminal points rated for 12 gauge wire and 20 amp max 250B (Class B/UL) 300V (CSA)
General Information
Name: SAE SSU00660 IF-Series Terminal Cabinet, 14"W 14"H 3-1/4"D, Keyed Lock, Red
Category: Space Age Electronics, Fire, Fire Accessories, Fire Mounting & Enclosures
UPC Code: 849137000084
Country of Origin: United States. Country of origin is subject to change.
