AL300ULMR Multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC / 60Hz input into five (5) individually protected Class 2 Rated power-limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices, including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.
Main Features
- Input 115VAC / 60Hz, 3.5A
- Input fuse rated at 3.5A/250V
- Fire Alarm Panel or Access Control System trigger inputs; NO or NC supervised trigger input and polarity reversal trigger input
- 12VDC or 24VDC Selectable outputs
- 2.5A Supply current
- Five (5) (Auto-resettable) PTC Protected outputs, rated at 2A
- Output relay energizes when unit is triggered (form "C" contact rated 1A at 28VDC)
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type batteries
General Information

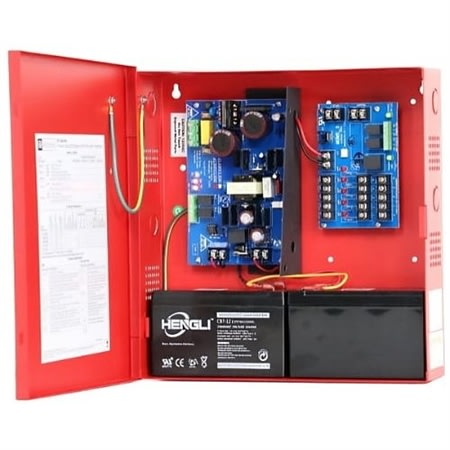

Name: Altronix AL300ULMR Access Power Distribution Module with Power Supply / Charger, 5 PTC Class 2 Outputs, 12/24VDC at 2.5A, FAI, 115VAC, Red BC300 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239934034
Country of Origin: United States. Country of origin is subject to change.
