Easily and cost effectively expand legacy systems to operate within an ISONAS Pure IP environment without having to issue new credentials or replace existing system panels. The IP-Bridge 2.0 connects the modern IP-network world and legacy wiegand installations. Simply unplug existing panels and attach wiegand readers directly to the IP-Bridge 2.0. When paired with the ISONAS R-1 reader, the IP-Bridge 2.0 provides legacy systems a path to mobile credentials.
Product Specification :
- Supports two doors
- Avoid rip and replace: Replace an existing panel system and eliminate the need to rip and replace existing reader hardware to fully upgrade your system
- Cost effective migration to IP: Keep existing power supplies, Wiegand readers and credentials and simply takeover with the IP-Bridge 2.0
- Leverage infrastructure investments: Migrate to Pure IP access control within your budget
- Utilize a single network port: Manage up to 96 doors by daisy chaining up to 32 IP-Bridges in series through the dual network port
- Local mode functionality: Each door is capable of storing 20,000 credentials, 5000 access events, and 32 time schedules allowing the device to function in local mode with limited dependability on the host
- Wiegand readers supported
- Compatible with 13.56MHz and 125KHz readers
- Supports burst mode in keypad readers
- Dimensions: 6.28" X 3.55" X 2.26"
General Information

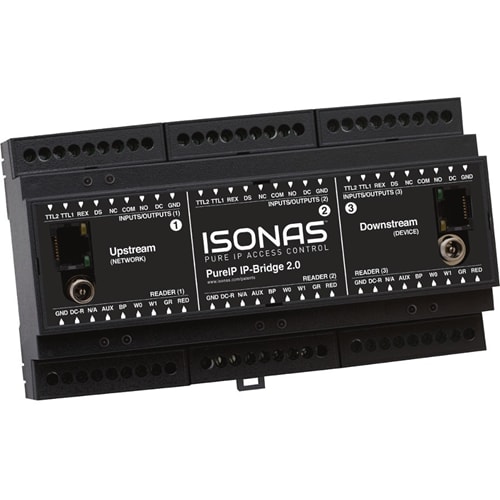

Name: ISONAS IPB2.0-2DOOR PureIP IP Bridge 2.0, 2-Door Model
Category: ISONAS, Access Control, Access Control Panels & Accessories, Access Control Panels
UPC Code: 685867920380
Country of Origin: United States. Country of origin is subject to change.
