Q-SYS CX-Q Series network amplifiers combine a legacy of robust power amplifiers, advancements in high-efficiency output devices and native network transport, control and monitoring capabilities. CX-Q 2K4 features four channels, capable of delivering customized power output loading and a total maximum power of up to 2000W. Low-Z, 70V or 100V direct drive are available on all channels.
What’s Included
- Four-Channel Network Amplifier for the Q-SYS Platform
- IEC cable
- Quick start guide
- Euro (green) connectors
Main Features
- Seamless Q-SYS integration with audio transport and control via standard gigabit Ethernet protocols and hardware
- Capable of providing up to 8,000W of power
- Low-Z, 70V and 100V direct drive available on all channels
- Hybrid circuit topology mixing the robustness of the PL380 PowerLight amplifier platform with new high-voltage, high-current output devices
- FlexAmp allows for asymmetric power distribution across amplifier channels
- Flexible Amplifier Summing Technology optimizes for either higher voltage loads (up to 200Vrms output) or high current loads (up to 35A)
- PowerLight universal switchmode power supply with PFC for highest efficiency; improved audio performance, and low weight
- Routable mic/line inputs provide additional onramps into Q-SYS
- Eight configurable, bi-directional GPIO connections
- Automatic energy saving modes ensure that the amplifier will draw the minimum amount of AC power while still providing outstanding audio quality
General Information

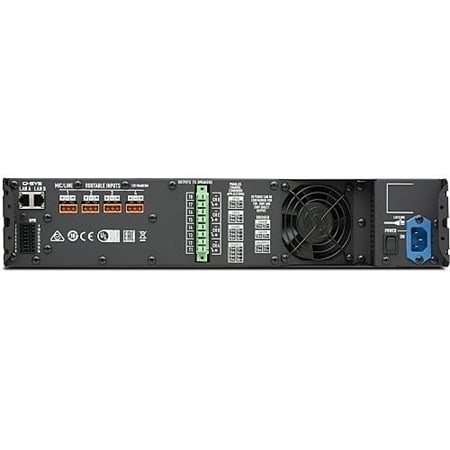

Name: QSC CXQ2K4 Q-SYS 4-Channel Network Amplifier with Mic/Line Inputs, 2000W
Category: QSC, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 684284076892
Country of Origin: . Country of origin is subject to change.
