Models 304GCX, 314GCX, 304GCX-CN, and 314GCX-CN SelecTone Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters. These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.
Main Features
- Four wire supervisable power circuit
- Capable of producing tones or voice messages
- Digital signal amplification
- Fused input and output
- Cast aluminum housing, spun aluminum projector
- External mounting tabs
- Type 4X, IP66 enclosure
- Indoor/outdoor use
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- UL Fire Listed
General Information

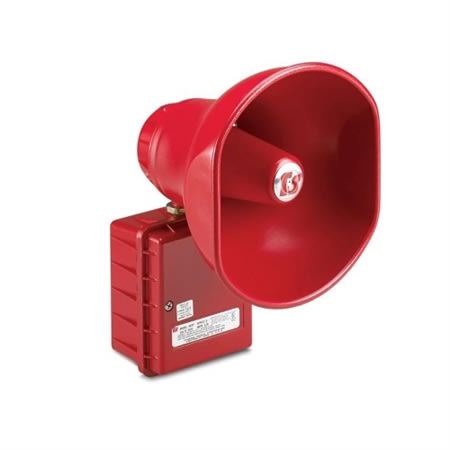

Name: Federal Signal 314GCX-024R SelecTone Hazardous Location Amplified Speaker, High Power, UL Fire Listed, Red
Category: Federal Signal, Fire, Fire Notification Devices, Speakers
UPC Code: 782979226123
Country of Origin: United States. Country of origin is subject to change.
Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters.
These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug‑in 32‑tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug‑in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.
The speaker cone and projector are constructed of rugged spun aluminum. The solid‑state amplifier circuit is protected in a die‑cast aluminum housing. Dust and moisture‑proof gaskets provide protection from the elements. All external surfaces are sealed with gray powder coat paint. These speakers are easily installed with external mounting tabs.
The rugged construction and high output of the Models 304GCX and 314GCX make it ideal for use in harsh environments with high ambient noise levels.
| Manufacturer Part Number | 314GCX-024R |
|---|
| Manufacturer | Federal Signal |
|---|
| Product Series | 314GCX |
|---|
| Family Series | Federal Signal Audible Signaling Devices, 314GCX Series |
|---|
| Description | SelecTone Hazardous Location Amplified Speaker, High Power, UL Fire Listed, Red - Available in 24VDC. Four wire supervisable power circuit. Capable of producing tones or voice messages. Built in gain control. Digital signal amplification. Fused |
|---|
| Accessory Type | Amplified Speaker |
|---|
| Explosion Proof | No |
|---|
| Hazardous Location | Yes |
|---|
| Mounting | Surface |
|---|
| Operating Temperature | -40-150 °F |
|---|
| Current Rating | 1.3 A |
|---|
| NEMA Rating | NEMA 4X |
|---|
| Approvals | CSFM, cUL |
|---|
| Net Weight | 7.5 lbs |
|---|
| Gross Weight | 7.5 lbs |
|---|
