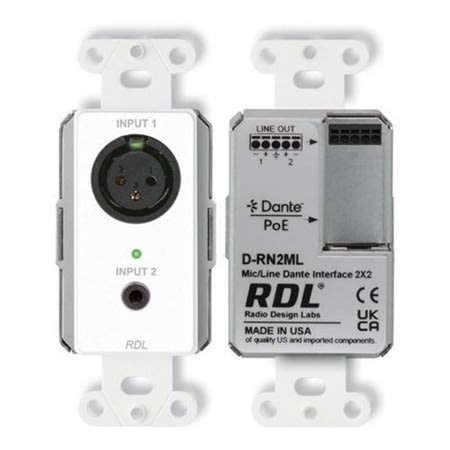

The D-RN2ML is a complete wall-mounted Dante or AES67 audio network interface. It features one XLR mic or line input on the front panel, one stereo Mini-jack line-level input summed to mono on the front panel and two balanced line outputs on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN2ML fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN2ML is PoE powered and is available in multiple finishes with optional customized graphics.
Main Features
- Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
General Information
Name: RDL D-RN2ML Wall-Mounted Bi-Directional Mic/Line Dante Interface 2x2
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code: 813721016775
Country of Origin: . Country of origin is subject to change.
