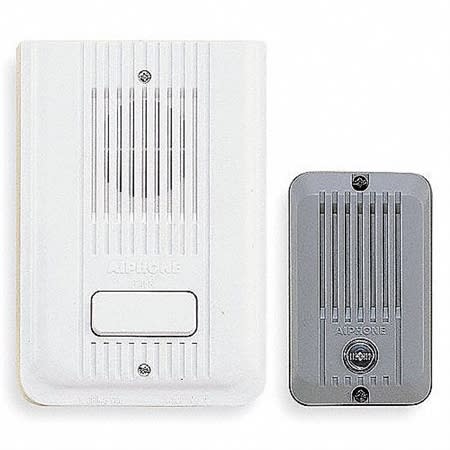

Chime Com 2 Set includes a door station (CC-DA) and a master station (CC-1M). Additional masters may be added. Each master requires a separate power supply, the PT-121N. The door station calls the master(s) by pressing a call button that initiates a chime. Communication is Push to talk/release to listen at the master and hands-free at the door station. Communication times out after being idle for twenty seconds. The master also has chime and voice volume controls and the door station features an illuminated call button Specs Type of communication: Push-to-talk (simplex)Mounting: Wall mount Wire Type: 2 cond., overall shield - use Aiphone #82222(22AWG) or #82182(18AWG) Wire Distance: Door Station to Master Station: 245'(22AWG), 59'(18AWG)
Main Features
Push-to-talk door answering with automatic shut-off
Backlit call button at the door station
Chime and voice volume control
CHIME and VOICE volume controls
Powered by AC transformer PT-121N
General Information
Name: Aiphone CCS-1A ChimeCom Set, Door Station, Master Station
Category: Aiphone, Communications, Intercoms & Telephone Entry, Intercom System Kits
UPC Code: 790143102050
Country of Origin: Vietnam. Country of origin is subject to change.
