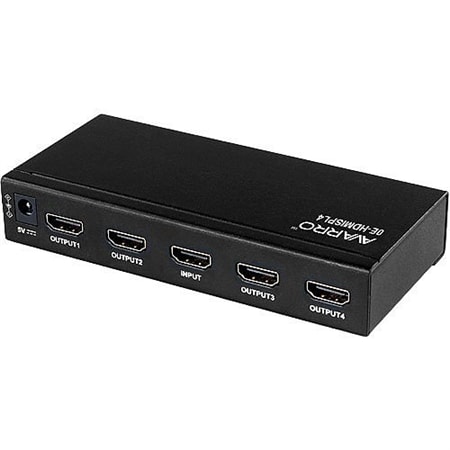

The 0E-HDMISPL4 by AVARRO is a 1:4 splitter for HDMI with Ultra HD 4K support that reliably distributes one HDMI source signal to four HDMI outputs.
Product Specification :
- I/O Connections: 1 x HDMI IN; 4 x HDMI OUT
- Input/Output Signal Type: HDMI1.4a, 3D and DVI 1.0
- Input/Output Resolution Supoport: 4K/1080p/1080i/720p/576p/480p/576i/480i
- Input Video Signal: 0.5-1.2 Volts p-p
- Input DDC Signal: 5 Volts p-p (TTL)
- Maximum Data Rate: 10.2 Gbps
- Maximum Pixel Clock: 340 MHz
