This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
What’s Included
- 29AWG Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
Main Features
- The GRI 29 AWG-W is aWhite magnetic reed switch designed for surface mounting
- The unit is equipped with a closed loop system, top terminals covers
- The switch offers a wide gap of up to 1-1/2 and 3/4 on steel
- 24" jacketed cable on PA Series
- Longer leads upon request on PA series
- Side mounted screw terminals on 29 series
- Standard gap up to 1", 5/8" on steel
- Wide gap up to 1 1/2", 3/4" on steel
- Extra wide gap up to 2", 1" on steel
- Spacers, covers and screws Included
General Information

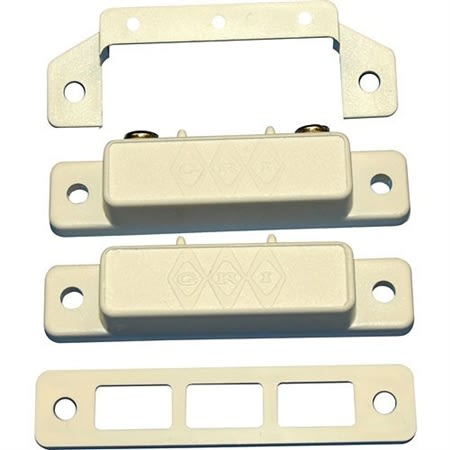

Name: GRI 29AWG Surface Mount Magnetic Reed Switch Set, 1-1/2" Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, White
UPC Code: 697625006762
Country of Origin: United States. Country of origin is subject to change
