When your installation requirements call for 8 additional hardwired zones for new or existing installations, the 4219 is your answer. The 4219 Wired Zone Expander adds up to 8 EOLR supervised zones which are connected to the control/communicator via the control's console wiring.
The 4219 is ideal for expanding existing hardwired jobs without changing the control panel. the ability to add multiple zone expanders to gain more hardwired zones offers maximum protection with minimal cost. The 4219 is housed in a white plastic case for wall mounting and can be mounted in Universal Can. If the 4219 is remotely mounted, there are provisions that tamper protect the unit so that it cannot be disconnected from the console wiring without detection by the control.
Main Features
Adds up to 8 end-of-line supervised zones
Connection made to the control's console wires
Supported on VISTA-20HW
Compatible controls/communicators VISTA-15P, VISTA-20P, and VISTA-21iP.
Expand existing security systems easily
Fits inside universal control cabinet
Easily wired to control panel
8-Zone expansion module
Current: 35mA
Limited Warranty: 2 Year
General Information

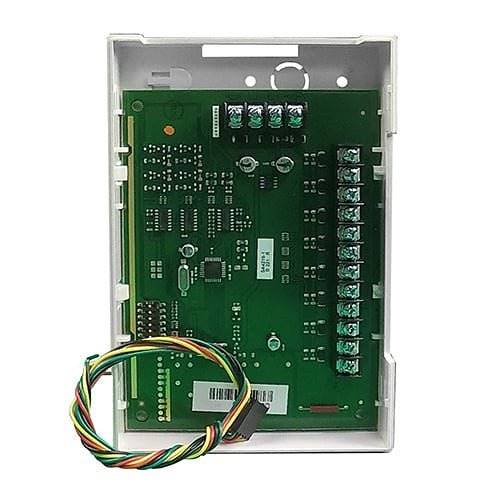

Name: Honeywell Home 4219 Wired 8-Zone Expander Module for VISTA-15P, VISTA-20P and VISTA-21iP
Category: Honeywell Home, Intrusion, Alarm Control Panels & Keypads, Control Panel Modules
UPC Code: 781410000872
Country of Origin: Mexico. Country of origin is subject to change.
