Notification Appliance Circuit (NAC) expanders/power supplies are designed to extend the power capabilities of existing NACs (to support ADA requirements and NAC synchronization) and provide power for auxiliary devices. They connect to fire alarm control panels (FACPs) or operate standalone.
Main Features
UL Listed NAC synchronization using System Sensor, Wheelock, or Gentex appliances
Supports Class A and Class B circuit configuration
Fully supervised NACs
Two fully independent supervised input/output control circuits
Selectable earth-fault detection
AC Trouble report selectable for immediate or delayed release
Provides auxiliary continuously-supplied output
Battery Charging Capacity 7 to 26 AH batteries; up to 26 AH batteries
HPFF12 Cabinet Holds up to two 18AH batteries
Secondary Power 24V operation two 7-26 AH batteries
General Information

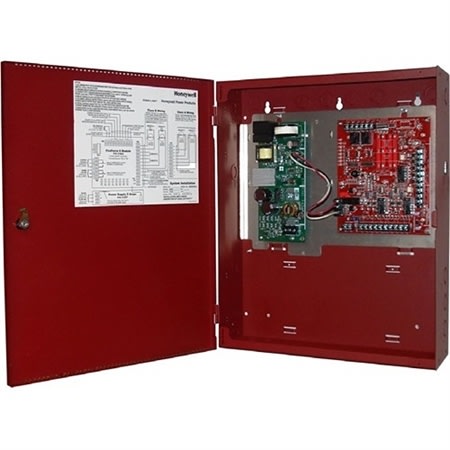

Name: Honeywell Power HPFF8CME Power Supply, 8A, 24V DC, F/A NAC P/S Chass Export
Category: Honeywell Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 783008111342
Country of Origin: United States. Country of origin is subject to change.
