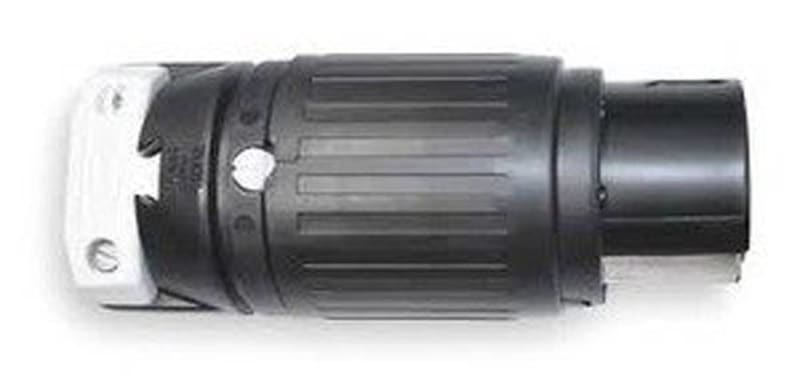

Hubbell Wiring HBL3764C Twist-Lock ; Polarized Locking Connector; 3-Pole, 4-Wire

This Hubbell Wiring Twist-Lock connector is a highly durable and reliable solution for industrial and commercial applications. It features a 3-pole, 4-wire polarized locking design in a black/white color combination. Made from robust nylon for the contact nose, body contact carrier, seal cup, latches, and front/rear housing, the connector is built to withstand challenging environments. The terminal/cord clamp screw is made from stainless steel, and the zinc-plated steel ground screw ensures a secure installation. The connector is designed to accommodate cord diameters between 0.75 to 1.125 inches and can handle terminal wires from 10 AWG to 6 AWG. It is UL listed and CSA certified for safety and reliability.

Product Specification:

• 3-pole, 4-wire polarized locking connector with durable nylon construction
• Rated for 50 amps, 600 VAC/250 VDC, and 2000 volts dielectric voltage
• Accommodates cord sizes from 0.75 to 1.125 inches and terminal wires from 10 AWG to 6 AWG
• Brass contact spring and UV-resistant Rynite polymer cord clamp for improved durability
• UL listed and CSA certified for safe and compliant use in demanding environments
