MCLASS Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.
This unit is a 12V and 24V DC dual voltage access power system.
The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.
MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Main Features
Converts current to the desired voltage and frequency to manage your power requirements
The constant 12V DC ensures smooth functioning
Providing up to 75W maximum output power
Predrilled and tapped holes for access panel mounting
Mounting hardware included
Single enclosure solution reduces wall space requirements
Removable backplate for easy installation
Includes lock, two (2) keys and tamper switch
Single AC drop
General Information

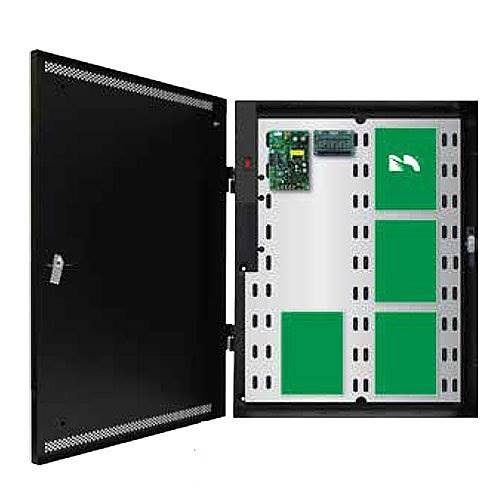

Name: LifeSafety Power FPO75-B100C4D8PE2M Dual Voltage 6A/12V Power Supply Board, 75W
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 811711026162
Country of Origin: United States. Country of origin is subject to change.
