Camera

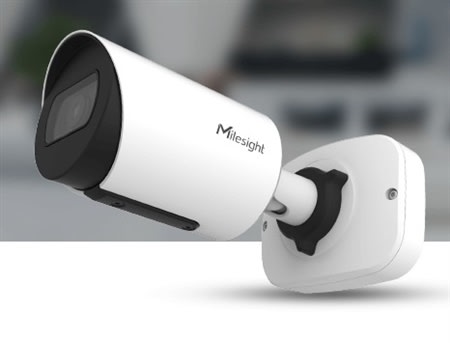

Name5MP AI Vandal-proof Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux @F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm/ 4mm/ 6mm @F1.6
MountM12
Field of ViewH105°/D131°/V78°(2.8mm)
H86°/D108°/V63°(4mm)
H52°/D63°/V40°(6mm)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &ReportCount the number of people entering or exiting
Basic Event
ExceptionMotion Detection, Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card
Event ActionFTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, HTTP Notification, etc.
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice&Video-over-IP
System CompatibilityONVIF Profile G & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption3.5W MAX, 5.4W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
WeightApprox. 610g (Junction Box Version) / Approx. 450g (Cable Out Version)
Dimensions97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
Warranty3 Years / 5 Years (Optional)
