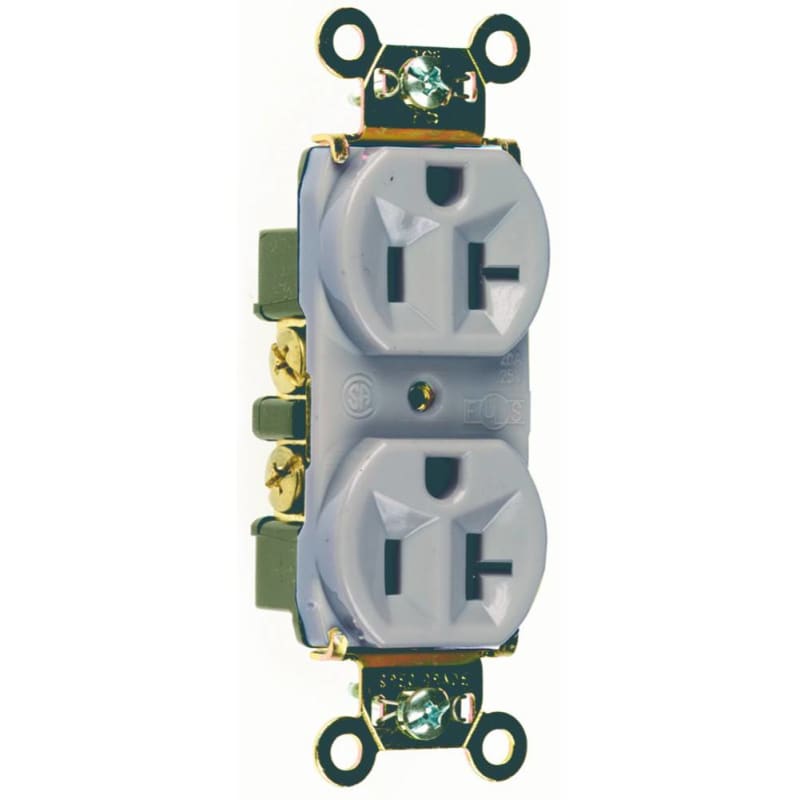

Pass ; Seymour 5362-GRY Double Pole Straight Blade Duplex Receptacle; Wall Mount

The Pass & Seymour Hard Use Spec Grade Duplex Receptacle in gray is designed for heavy-duty applications, offering durability and long-lasting performance. It features a robust, impact-resistant nylon face and 0.032-inch thick brass and triple-wire power contacts for enhanced retention and reliability. With a voltage rating of 125 Volts and a current rating of 20 Amps, this receptacle is ideal for commercial, industrial, and residential use. The corrosion-resistant, plated, and tabbed steel strap is securely locked into the assembly, preventing the strap from bending away from the body. It includes secluded terminal compartments for positive conductor containment and supports back and side wiring for flexibility. The receptacle also features eight-hole internal screw-pressure-plate terminals that accept 14-10 AWG copper or copper-clad conductors for secure connections. The auto-ground clip ensures a solid grounding connection, and it comes with tri-drive terminal and mounting screws for easy installation. Measuring 1.322" x 0.780" x 3.281", this receptacle includes a break-off line-contact connecting tab for quick and easy split-circuit wiring. It is UL and CSA listed for safety and compliance.

Product Specification :

• Hard use spec grade duplex receptacle in gray
• Durable impact-resistant nylon face for long-lasting performance
• 0.032-inch thick brass and triple-wire power contacts for superior retention
• Voltage rating: 125 Volts, current rating: 20 Amps
• Corrosion-resistant, plated, and tabbed steel strap to prevent bending
• Secluded terminal compartments for positive conductor containment
• Back/side wired with eight-hole internal screw-pressure-plate terminals
• Accepts 14-10 AWG copper or copper-clad conductors for reliable connections
• Auto-ground clip for positive grounding
• Tri-drive terminal and mounting screws for easy installation
• Break-off line-contact tab for quick, easy split-circuit wiring
• UL and CSA listed for safety and compliance
• Dimensions: 1.322" x 0.780" x 3.281"
• Ideal for use in high-traffic and heavy-duty environments
