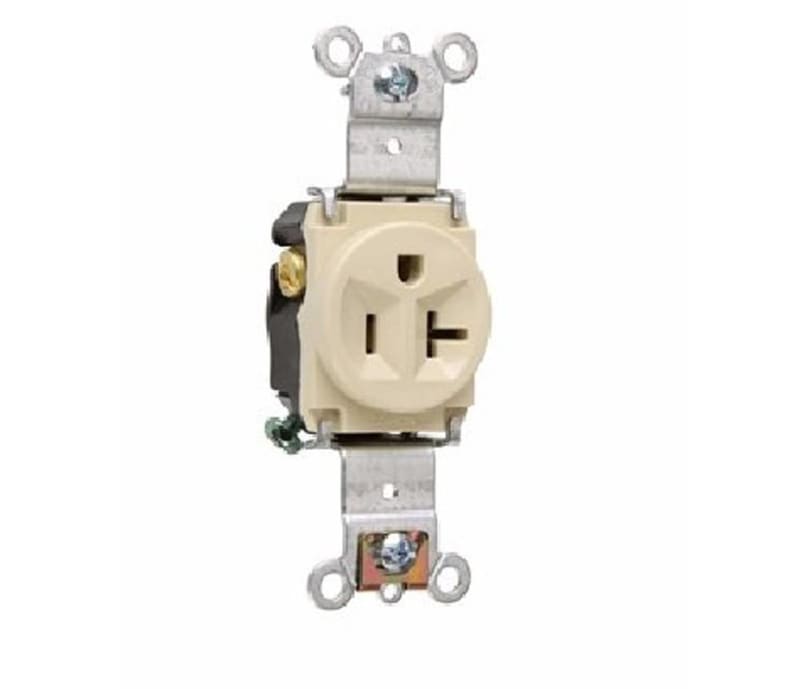

Pass ; Seymour Double Pole Single Receptacle; Wall Mount, 125 V, 20 Amp, Ivory

The Pass & Seymour Heavy-Duty Spec Grade Single Receptacle in ivory is designed for long-lasting, reliable performance in demanding environments. Constructed with an impact-resistant nylon face and a thermoplastic back body, this receptacle features one-piece brass and triple-wire power contacts for superior retention. Rated for 125 Volts and 20 Amps, it includes terminal compartments that are isolated from each other to ensure positive conductor containment. The corrosion-resistant, plated steel strap is securely locked into the assembly, preventing it from bending away from the body. The auto-ground clip ensures a reliable ground connection, while back/side wire connections provide flexibility. This receptacle also features tri-drive terminal and mounting screws for easy installation and an internal screw-pressure-plate back wire that accepts 14-10 AWG copper or copper-clad conductors for a secure connection. It measures 1.320" x 1.093" x 3.280" and includes a break-off line-contact connecting tab for quick split-circuit wiring. The receptacle is UL and CSA listed for safety and reliability.

Product Specification :

• Heavy-duty spec grade single receptacle in ivory
• Impact-resistant nylon face and thermoplastic back body for durability
• One-piece brass and triple-wire power contacts for long-lasting retention
• Rated for 125 Volts and 20 Amps
• Back/side wire connections with tri-drive terminal and mounting screws for easy installation
• Auto-ground clip for positive grounding
• Accepts 14-10 AWG copper or copper-clad conductors for reliable connections
• Break-off line-contact tab for quick split-circuit wiring
• UL and CSA listed for safety
• Dimensions: 1.320" x 1.093" x 3.280"
• Ideal for commercial, industrial, and residential use
