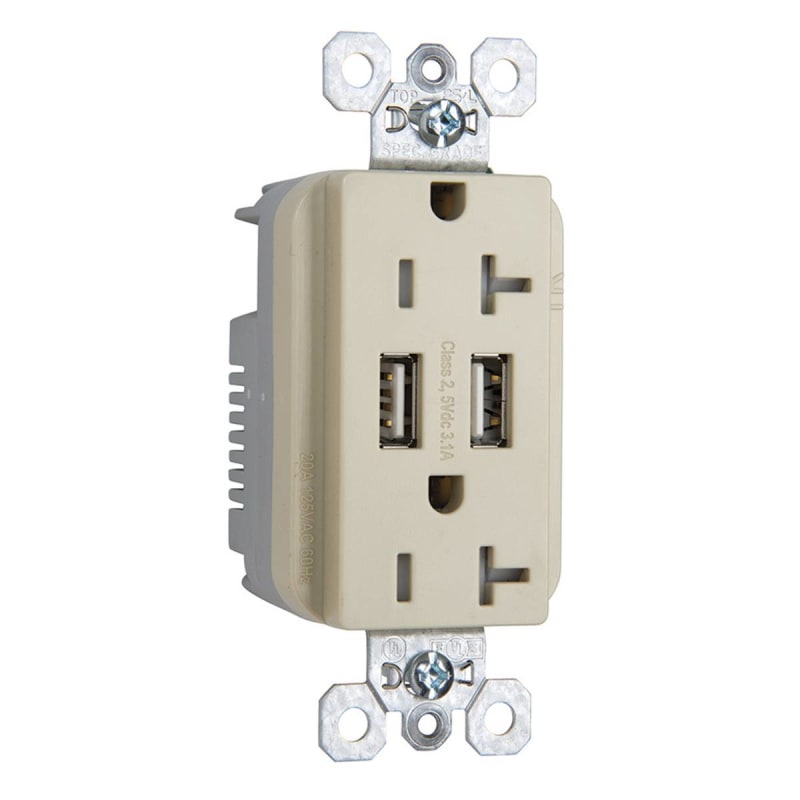

Pass & Seymour TR-5362USBI 20 Amp 125 VAC NEMA 5-20R Ivory Decorator Duplex USB Charger Receptacle

The Pass & Seymour Duplex Tamper Resistant Receptacle with USB Charger in ivory color combines advanced safety features with convenient charging capabilities. Constructed with a polycarbonate face and a durable nylon body, this receptacle ensures strength and longevity. It provides a total of 3.1 Amps USB charging power through two 5 VDC USB ports, which are compatible with both USB 2.0 and 3.0 devices. This receptacle operates at 125 Volts/20 Amps and measures 1.693 inches x 1.392 inches x 3.280 inches. The tamper-resistant design prevents improper insertion of foreign objects, enhancing safety. It accommodates 14-10 AWG stranded and solid copper wires and features stainless steel auto-ground clips for reliable grounding. The receptacle has a NEMA 5-20R configuration and includes CDA 260 brass contacts and tri-drive zinc-plated steel terminal screws, which come in either clear or black chromate for easy color identification. This unit meets NEMA rating requirements and federal specifications, and it is UL listed and CSA certified.

Product Specification :

• Durable polycarbonate face and nylon body for improved strength and longevity
• Provides 3.1 Amps USB charging power with two 5 VDC USB ports, compatible with USB 2.0 and 3.0 devices
• Rated for 125 Volts/20 Amps with tamper-resistant design to prevent foreign object insertion
• Accommodates 14-10 AWG solid or stranded copper wire with stainless steel auto-ground clips for positive grounding
• NEMA 5-20R configuration, UL listed, CSA certified, and meets NEMA rating/federal specification
