The Signaling Line Circuit Expander (SLCE-127) allows for an additional loop for the PFC-6200 and up to seven additional loops for PFC-6800 fire alarm control panels. Each loop adds 127 addressable sensors or modules in any combination. The SLCE-127 may be configured for Class A or Class B wiring without the need for additional modules. The SLCE-127 communicates with the control panel via the Potter P-Link communication bus. The loop adder is mounted in either the control panel cabinet, the intelligent power supply/P-Link repeater, the PSN-1000E, AE-8 or the AE-14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
Potter's Stacker Bracket allows for multiple expansion cards to be placed in a smaller area, multiplying the capabilities of your system.
What’s Included
- Addressable Loop Expender
- Stacker Bracket
Main Features
- No special Wiring for SLC or P-Link connection
- Class A or B capable
- Mounts with included stacker bracket
- May mount in panel, accessory cabinet, or PSN-1000/E Power Supply
- Maximum 1 SLCE-127 for PFC-6200
- Maximum 7 SLCE-127 for PFC-6800
- Size (W x H x D) is 4" x 6" x 1-5/8" Electrical Specs
- 60 mA alarm current
- 60 mA standby current
General Information

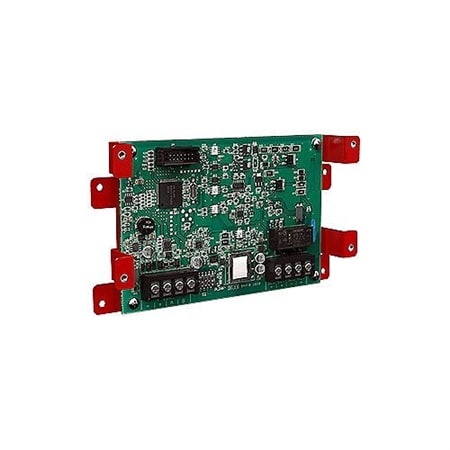

Name: Potter SLCE-127 Addressable Loop Expander
Category: Potter Electric Signal, LLC, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 785192021193
Country of Origin: United States.Country of origin is subject to change.
