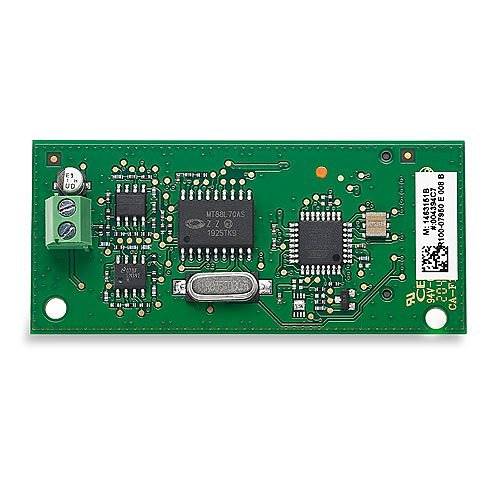

Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator

Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator

Resideo
List Price: $51.74
$
Savings: $
Product Code: RES-PRODCM
UPC Code: 194160007228
Quantity in Stock: 156 in stock!
The PRODCM Dialer Capture Module from Resideo can be used with the LTEM-PA and LTEM-PV Advanced Modular Communicator. Optional Dialer Capture Module is used with control panels that sends Contact ID alarm signals via the control panel's dialer.

Product Specification
  • Dialer operation is set for DTMF Tone Dialing for each phone number (pulse dialing is not supported and must be disabled in the control panel)
  • PABX field is disabled (the Dialer Capture module does not co mmunicate through a PABX)
  • Phone numbers and account numbers are programmed (to ensure the maximum number of messages can be transmitted to the central station before a communication failure occurs, ensure the control panel is programmed with a primary and secondary central station number)
  • Report format is set to Contact ID for each phone number
  • The maximum number of retry attempts is programmed
  • Desired zone and partition reports are enabled.
Name: Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator
Category: Resideo, Intrusion, Alarm Communicators & Equipment, Alarm Communicator Modules
UPC Code: 194160007228
Country of Origin: Mexico. Country of origin is subject to change.
