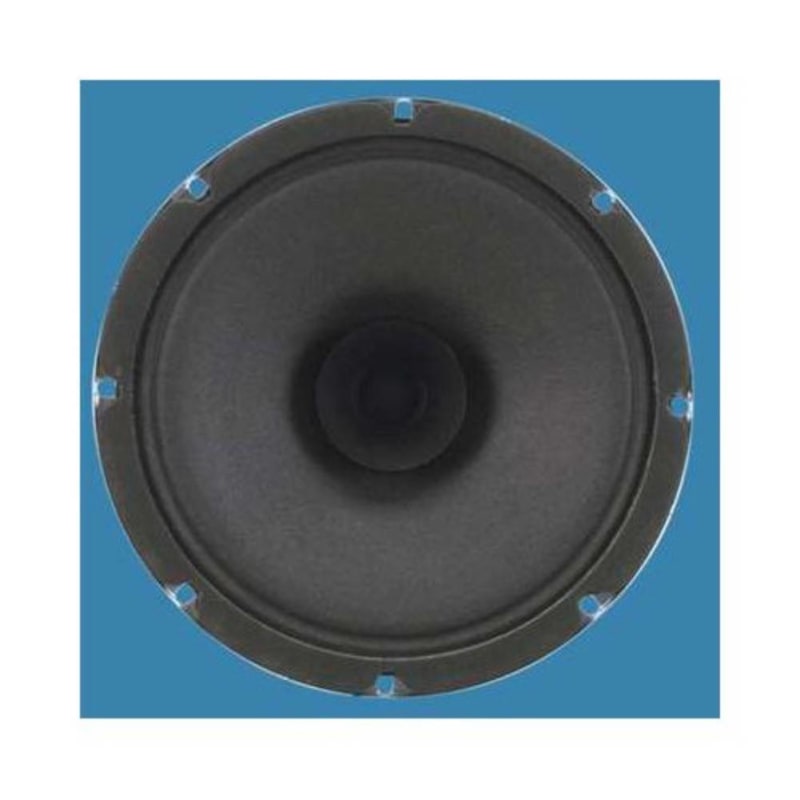

AtlasIED SD72 8" Dual-Cone In-Ceiling Speaker with 25V, 70V 5W Transformer

The Atlas Sound SD72 is an 8" dual cone loudspeaker with a 25V/70.7V 5W transformer, offering exceptional performance in various audio applications. Built with high-quality components like a ceramic magnet, treated paper cone, and copper voice coil, the SD72 delivers clear, low-distortion sound. With a frequency response range of 45Hz - 19kHz and a sensitivity of 97dB, it is ideal for commercial and institutional spaces. The speaker also features a 105-degree dispersion angle and is compatible with a wide range of Atlas Sound enclosures.

Product Specification :

• 8" dual cone loudspeaker with 25V/70.7V 5W transformer
• Frequency response range of 45Hz - 19kHz (nominal) for high-quality sound reproduction
• Sensitivity of 97dB and 105-degree dispersion angle for wide sound coverage
• Includes a 10oz ceramic magnet for enhanced performance and low harmonic distortion
• Equipped with a 1" copper voice coil and black anodized aluminum former for better power dissipation
• Factory-installed 25/70.7V line matching transformer with tap selections from .25 to 5 watts
• Compatible with Atlas Sound's wide range of round and square baffles and enclosures for various installation needs
• Ideal for commercial audio applications such as paging, public address systems, and background music
