The AC-IOE expands the number of inputs and outputs, or floors, in an ACS-IO or ACS-ELV starter kit by eight. Communicating via RS485, this controller can be connected via PRS-Strip or standard RS485 wiring. Up to seven AC-IOE can be added to theACS‑IO or the ACS-ELV kits.
Main Features
- Eight dry contact inputs (per door)
- Eight dry contact solid state relays (per door)
- UL and ULC Listed (UL 294/ULC 5319-5)
- Dimensions: 3-1/2"Hx3-3/4"W
- Contact Rating: 3V DC@5A
- Power Source: 12V DC (drawn from main board)
General Information

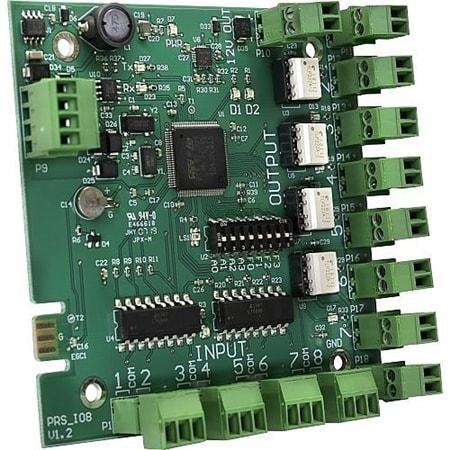

Name: Aiphone AC-IOE AC Series 8-Floor 8-Port IO Expander Board without Enclosure, requires ACS-ELV or ACS-IO Starter Kit
Category: Aiphone, Access Control, Access Control Panels & Accessories, Control Panel Boards & Servers
UPC Code: 788255196142
Country of Origin: Canada. Country of origin is subject to change.
