The Alpha Communications CDL101LED Corridor Dome Light (with single White LED) provides visual indication of any type of call when used with a nurse-call, emergency-call, or for stand-alone signaling applications. Unlike most LED type corridor lights, the CDL101LED can operate on 24VAC OR 24VDC, and not just 24VDC. When used with our AlphaLinQ 100 series nurse-call systems, emergency calls are indicated by the rapid flashing of the CDL101LED corridor dome light associated with the calling station. Normal (routine) calls produce a steady illumination. The CDL102LED corridor zone light indicates an emergency call by the rapid flashing of the red LED associated the zone or area from which an emergency call has been placed. Normal calls are indicated by a steady illumination of the white LED. The CDL101LED can also be used with our AlphaEcall series and other emergency-call and/or signaling system(s), even those from other manufacturers.
The CDL101LED mounts on a standard 1 or 2-gang electrical back box and feature a long-life, high brightness pure White LED, eliminating the need for costly bulb replacements, and for maximum call indication.
What’s Included
CDL101LED Corridor Dome Light (LED type)
1 x CDL-DIV Dome Light Divider
Main Features
U.L. 1069 Listed - to the latest Standards
Operates on 24V AC OR 24V DC
Long-Life, High-Brightness pureWhite LED - no costly bu lbs replacement
Flame Retardant Fog White ABS Plastic Panel
Excellent Visibility
Mounts on 1-gang OR 2-gang electrical box or plaster ring
General Information

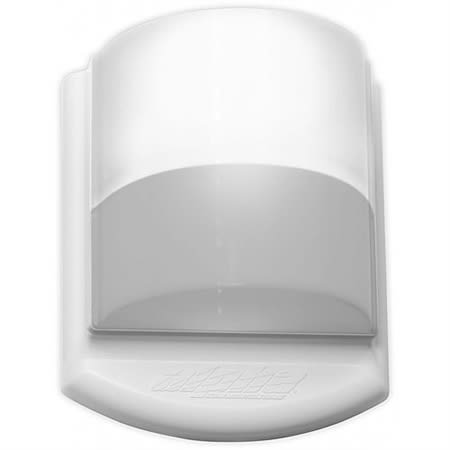

Name: Alpha CDL101LED LED Corridor Dome Light, Single-Color (White)
Category: Alpha Communications, Communications, Nurse Call Systems, Call Lights
UPC Code: 723118072539
Country of Origin: Malaysia. Country of origin is subject to change.
