The Potter PS25 Series Supervisory Pressure Actuated Switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are: air/nitrogen supervision in dry pipe and pre-action systems, pressure tanks, air supplies, and water supplies. The PS25-2 has two switches. The Low switch is factory set to activate at approximately 18 psi (1,2 BAR) on a decrease in pressure. The High switch is factory set to activate at approximately 28 psi (1,9 BAR) on an increase in pressure. NFPA 72 requires a supervisory signal for both high and low pressure conditions. The PS25 is factory set for a normal air pressure of 23 psi. See section heading Adjustments and Testing if other than factory set point is required.
Main Features
- Two switch model
- Independent switch adjustment, no tools needed
- Two 1/2" conduit/cable entrances
- Separate isolated wiring chambers
- Non-corrosive pressure connection
- Non-Conductive Enclosure
- VdS version available
General Information

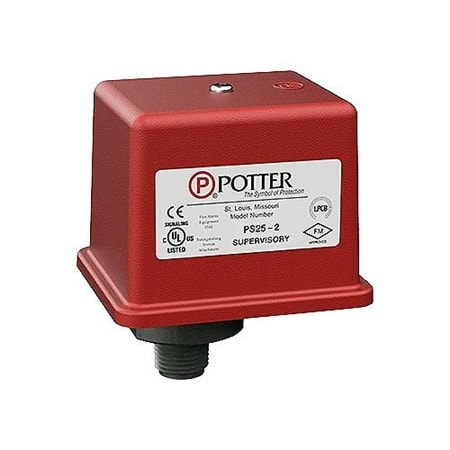

Name: Potter PS25-2 PS25 Series Low/High Supervisory Pressure Switch for Low Differential Dry and Preaction Valves Nominal System Pressure 25 psi
Category: Potter Electric Signal, LLC, Fire, Water Flow Controls
UPC Code: 785192024132
Country of Origin: United States. Country of origin is subject to change.
