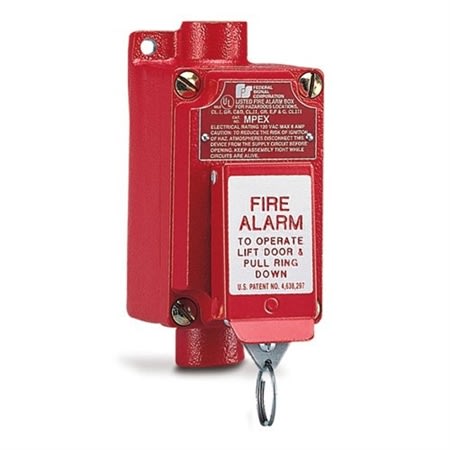

Model MPEX Explosion-Proof Pull Station is designed for hazardous locations where flammable gases, vapors, combustible dusts or easily ignitable fibers are present. The unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. MPEX is reset by depressing the shaft and returning the plate to its original position. The enclosure is made of copper-free cast aluminum alloy.
Main Features
- Contacts on the unit are rated 120V AC, 60Hz at 6 As continuous
- 60Hz at 6 As continuous
- Highly visible red enclosure
- Lift cover and pull down ring to activate
- 2 - 3/4" conduit entry
- Explosion-Proof
- CSFM Approved
- UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
- NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
- UL Fire Listed and ULC Fire Listed
General Information
Name: Federal Signal MPEX Explosion-Proof Fire Alarm Pull Station
Category: Federal Signal, Fire, Fire Pull Stations, Dual Action Pull Stations
UPC Code: 782979200758
Country of Origin: United States. Country of origin is subject to change.
