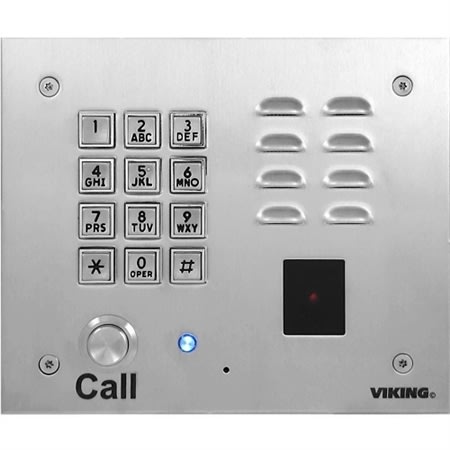

The K-1770-3 is a tough and attractive speaker phone designed to provide two-way audio communication and proximity entry, ideal for apartment and residential door entry applications. The entry phone features a built-in 125 KHz proximity card reader, microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. The proximity card reader outputs industry-standard 26-bit Wiegand data, allowing it to be used with a Viking ES-1 door controller or any 26-bit Wiegand compatible controller.
When the “Call” button is pressed, the K-1770-3 returns dial tone, and the keypad may then be used to dial any number. If no touch tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1770-3 will automatically disconnect. Alternatively, the speaker phone may be disconnected by pressing the “Call” button again.
The K-1770-3 entry phone is designed to be flush-mounted using the included rough-in box. Surface mount options are also available using one of Viking’s VE-6×7 Series of Surface Mount Boxes.
For outdoor installations where the unit is exposed to precipitation or condensation, use model K-1770-3-EWP.
Applications
- Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller
- Use with a Viking C-500 to control 1 or 2 (expandable to 8) speaker phones and door/gate control on a single phone line
- Use with a Viking C-2000B to control 1 to 4 speaker phones and door/gate control on a single phone line (DOD 156)
- Courtesy and customer assistance phone
- Automated teller (ATM) phone
- Use with a Viking ES-1 for proximity card reader door control
- Provide unique front and back door chimes and paging when use with a Viking SLP-1 or SLP-4 and C-2000B
- Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer (DOD 321)
- Use with Viking’s Proximity Cards: PRX-C, PRX-C-ISO or PRX-FOB (DOD 198)
Features
- Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep card read confirmation, and EWP board protection
- Compatible with the following Viking Proximity Cards and Fobs: PRX-C, PRX-C-ISO and PRX-FOB (DOD 198)
- Vandal Resistant Features:
- 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics
- Stainless steel “Call” button
- Heavy duty metal keypad
- T-10 Torx security mounting screws
- Weather Resistant Features:
- Marine grade 316 stainless steel faceplate, screws and push button switch
- Switch internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Faceplate, mic and speaker gaskets
- Blue “in use” LED
- Telephone line powered
- Volume adjustments for microphone and speaker
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
- Selectable auto-answer feature for monitoring
- Selectable push button disconnect
- Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
- Optional VE-6×7 Surface Mount Box available (DOD 424)
- Optional VE-LIGHT to illuminate the front panel at night (DOD 428)
Certifications
Specifications
Entry Phone PowerTelephone line powered 20V DC/20mA minimum
Proximity Card Reader Power5 to 14V DC @ 60mA maximum
Overall Dimensions5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm)
Rough-in Box Dimensions4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)
Shipping Weight3.5 lbs (1.6 kg)
Environmental-30°F to 150°F (-34°C to 65°C)
Humidity5% to 95% non-condensing
Speaker VolumeApproximately 70 db maximum @1m
CPC Disconnect Time500ms minimum
REN #0.5 A
ConnectionsGel-filled tip and ring connectors
Name: Viking K-1770-3 Proximity Card Reader with Reader, Stainless Steel
Category: Viking Electronics, Access Control, Keypads & Readers, Proximity Readers
UPC Code: 615687226614
Country of Origin: United States. Country of origin is subject to change.
