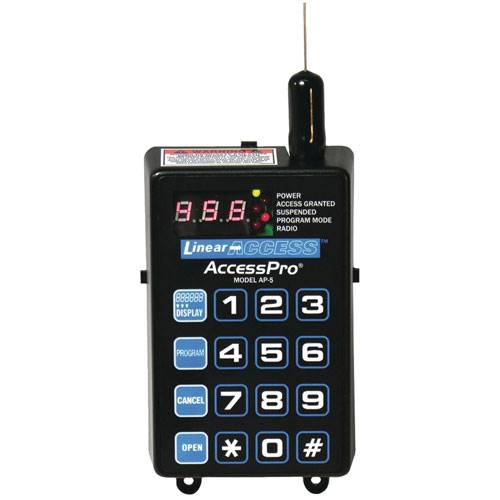

The AP-5 Wireless Access Controller - Two Gate or Doors is designed for a broad range of applications and can control one or two door strikes, mag-locks, barrier gates, automatic gates, or door operators. Its wireless design and small size fits a variety of access control requirements.
The AP-5 monitors each MGT safety edge transmitter for hourly status reports, tamper signals, and low battery signals. A beep will sound every 5 seconds if a fault occurs and the trouble source can be displayed. An access transmitter must be activated twice to trigger the access relay if a supervisory trouble condition exists on any MGT transmitter.The AP-5 can be powered from 12-24 Volts AC or DC. The Form C relay outputs can switch up to 1 Amp each. An EARTH GROUND terminal is provided as a recommended connection for maximum lightning and static protection.
Product Specification :
- Easy to set-up and use, up to 480 remotes can be programmed with a few keystrokes
- Easy to add, suspend, and delete transmitters through programming mode, no transmitter dip switches to set
- Supports 480 block coded transmitters or 238 individual transmitters/wireless keypad entry codes
