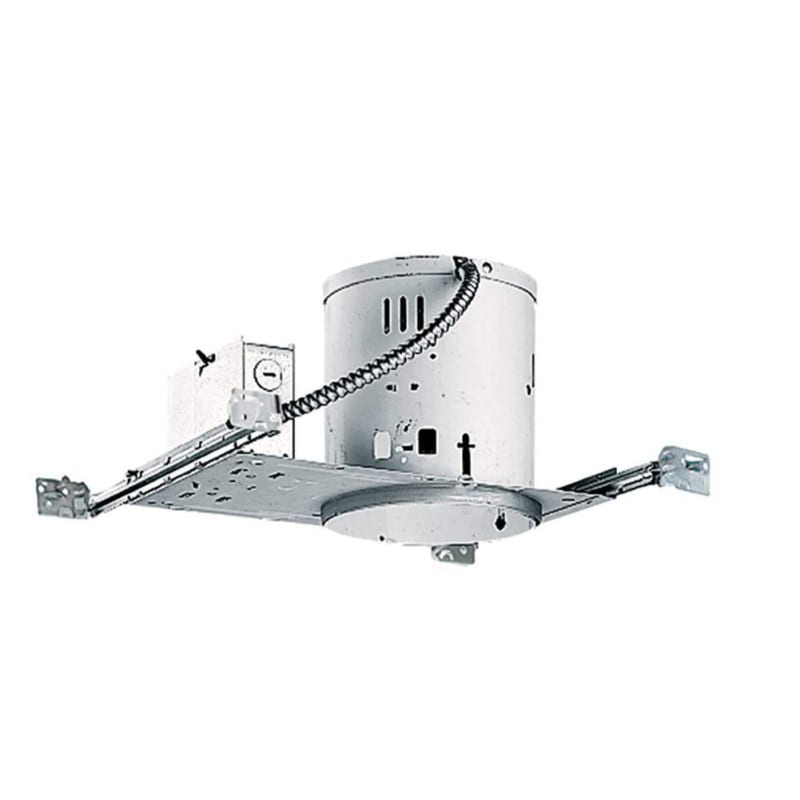

The TC2 6 Inch Downlight Incandescent Housing is a Non IC rated housing. The housing has a drop socket with spring to accommodate various trim installations and contains a medium base porcelain socket with nickel plated copper screw shell that accepts an incandescent light bulb. Bulb wattage ratings and apertures are based on trim selection. Installation of the TC2 is made easy with the Real Nail 3 telescoping system featuring bugle headed nails for easy repositioning of housing in joist construction and integral T bar clip to secure housing in suspended ceiling grid. Patented breakaway bars for tight joist spacing and curved foot facilitates alignment with joist bottom. Quick Loc slot and oversized set screw lock fixture in position. Bar hangers may be re positioned 90 degrees. The TC2 is supplied with a pre wired junction box with 5 1/2 Inch and 1 3/4 Inch knockouts, 4 non metallic sheathed cable connectors, and ground wire. UL Listed, C UL/CSA certified for damp and wet locations and for through branch wiring, with a maximum of 8 12 AWG 90 degrees Celsius branch circuit conductors. Wet location listed when using a 20, 21, 22, 239, 240, 241, 242, 243 or 9900 trim. The wet listing also includes the 28 and 29 trims when used with PAR30/PAR38 outdoor rated bulbs. All trims are sold separately and come in a wide variety of styles and finishes, including the 23, 24, 25, 26, 27, 224, 226, 228, 229, 230, 232, 233, 244, 247, 249, 250, 251, 254, 257, 261, 264, 267, 424, 427, 9024, 9324, 9524, 9900 or XR30101 trims. Conforms to City of Chicago IP requirements. Building on over 30 years of leadership in recessed lighting, Juno Down Lites are renowned for their versatility, efficiency and economy. Whether its general downlighting, wall washing, or accent lighting, Juno recessed fixtures will help make your vision a reality. Juno Lighting Group s warranty period for general lighting products is one year from date of purchase.
