The Expansion Kits offer a comprehensive and easy to install solution for small to medium size businesses to expand their access control system in one door increments (KT-1), two-door (KT-300) or four door increments (KT-400). The expansion kits are compatible with EntraPass Special Edition, Corporate Edition and Global Edition.

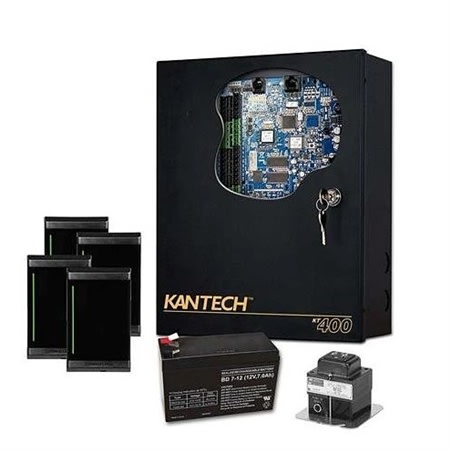

KT-400 Expansion kit includes: KT-400 Controller, TR1675 Transformer and KT-BATT-12 Battery. (US and Canada)
Product Specification :
- Supports four readers and expand inputs, outputs, and relays with the addition of expansion modules
- Onboard Ethernet 128-bit AES-encrypted communication with the EntraPass system ensures a high degree of network security
- Control the occupancy level in a defined location with the anti-passback feature
- 100,000 card capacity and provides up to 20,000 concurrent events in stand-alone mode
- Removable terminal blocks help expedite installation and enhance serviceability
- 256 inputs (16 onboard with high security double end-of-line resistor configuration) and 256 outputs (four onboard) provide scalability
- Communicates with the EntraPass Gateway only when an event has occurred, ensuring low network bandwidth consumption (Special and Corporate Editions only)
- Verify and configure IP settings with a built-in web configuration page
- Supervised door lock outputs with internal or external power supply
- LEDs provide important controller status and diagnostic information
