This base includes a relay. Normally Open or Normally Closed operation is selected during installation. The dry contact is rated for 1 amp (pilot duty) at 30 Vdc. The relay’s position is supervised to avoid accidentally jarring it out of position. The KI-RB can be operated as a control relay if programmed to do so at the control panel. The relay base does not support the GSA-LED Remote LED
Main Features
The dry contact is rated for 1 A (pilot duty) at 30V DC
The relay’s position is supervised to avoid accidentally jarring it out of position
The relay base does not support the GSA-LED Remote LED.
FM Approved
California State Fire Marshal Listed
cULus Listed
General Information

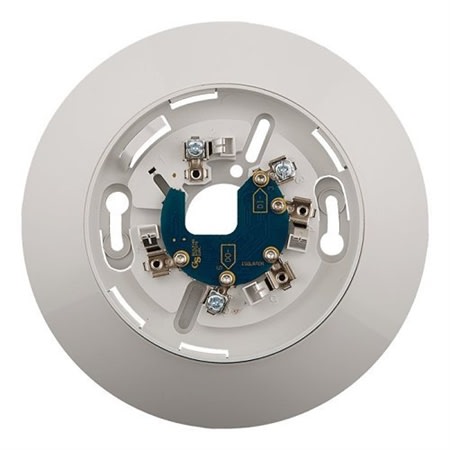

Name: Kidde KC2-RB4 2-Wire 4" Detector Mounting Base with Relay Trim Skirt, White
Category: Kidde Commercial, Fire, Fire Detection Devices & Accessories, Detector Accessories & Bases, Detector Bases
UPC Code: 793016061645
Country of Origin: United States. Country of origin is subject to change.
