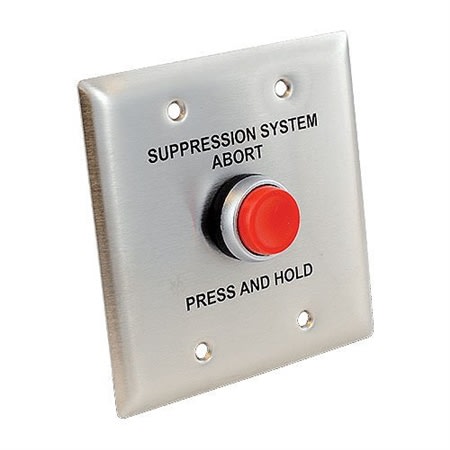

The Potter Abort Switch is designed to be wired to the abort terminals of the Potter PFC-4410-RC, PFC-4410A-RC and PFC-4410RC (9th Edition) releasing panels. The device consists of a stainless steel faceplate and a modular switch assembly. It is designed to mount on a standard double gang electrical enclosure.
Main Features
- UL and cUL Listed, FM Approved
- Dimensions: 4-1/2" W x 4-1/2" H x 2" D (Approximate)
- Contact Rating: One N.O. momentary contact rated. 2.5 Amps @ 24 VDC (5 mA minimum)
- Environmental Specifications: Indoor use only
General Information
Name: Potter ABORT-B Blue Button Abort Switch for PFC-4410-RC
Category: Potter Electric Signal, LLC, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:
Country of Origin: . Country of origin is subject to change.
