The NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000' (2.4km) on RG6. That's 24X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF location requirements. With the 1701+ Extender Solution, IP IoT devices can be connected to the existing Coax, UTP or 2 wire cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realized by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.

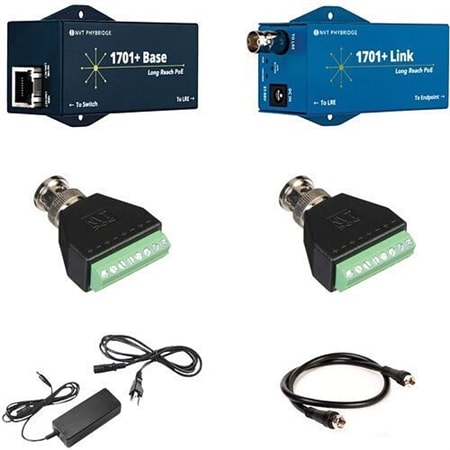

What’s Included
1 x 1701+ Base Extender (NV-EC1701PLS-BSE) 1 x 1701+ Link Adapter (NV-EC1701PLS-LK) 1 x NV-PS55-60W Power Supply with IEC line cord 2 x BNC Screw Terminal Adapter (NV-BNCA) 1 x 2? Coax Cable
Main Features
- Paired with 1701 Link Adapter
- Data rate up to 420Mbps with up to 8,000' (2.4km) reach
- Negotiates power with 802.3at/af PoE Switch (802.3at/af max power is 30W)
- 1701 Base can also be locally powered for non-PoE switch deployments or high-power delivery (100W)
- 10/100/1000 Base-T, Auto-MDIX interface with Ethernet Switch
- Supports up to 4 endpoints in a point to multi-point topology
- LED Indicators (power, link, data)
General Information
Name: NVT Phybridge NV-EC1701PLS-XKIT Extender Kit, 1701 Base Extender, 1701 Link Adapter, NV-PS55-60W Power Supply, 2-BNC Screw Terminal Adapter, 2' Coaxial Cable
Category: NVT Phybridge, Data Comm & Networking, PoE Devices
UPC Code: 735890501411
Country of Origin: Canada. Country of origin is subject to change.
