TX3-CX-4-A The TX3-CX-4-A controller conveniently houses two 2-door controller boards providing a 4-door system. The chassis can hold up to four 2-door controller boards in total, providing the provision to add two additional 2-door controller boards to extend the number of doors.
What’s Included
- 4 Door Card Access System
- Transformers
- 1 IP Module
- USB Cable
Main Features
- A hybrid architecture that combines the best of TCP/IP and RS-485. All panels can be networked via RS-485 or TCP/IP.
- Each 2 door controller board can provide up to 8 programmable outputs; 6 Form C contacts (normally open/normally closed), two powered outputs provide 12 VDC power for up to 1A of current combined
- 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two provide 12 VDC power for up to 1 ampere of current combined
- Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
- Optional vehicular control using dual technology wireless transmitters that can have a built-in proximity coil (wafer)
- A variety of options to remotely manage the TX3 access panel to fit the site requirements. A modem, a TCP/IP module or use a local USB extender to a PC
- Compatible with any Wiegand reader technology including Mifare, biometric, proximity and iClass
- Elevator Control for up to 96 floors to restrict users to specific floors
General Information

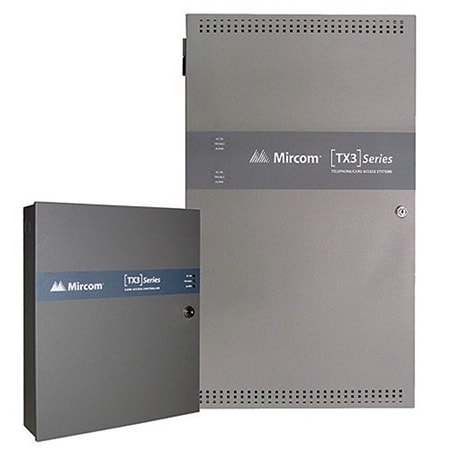

Name: Mircom TX3-CX-4-A 4-Door Card Access System
Category: Mircom, Access Control, Keypads & Readers, Smart Readers
UPC Code: 778346019009
Country of Origin: Canada. Country of origin is subject to change.
