These hard-working multi-purpose electromagnetic locks enhance building security and install quickly. Several standard features make these magnets the "workhorse" of the industry. The adjustable mounting bracket has been enhanced with keyhole mounting to support the magnet's weight during initial installation, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
Main Features
- Keyhole mounting for ease of installation
- Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
- Convenient plug-in Wiring terminals
- Easy-access wiring cavity
- Stabilizing 4 bolt "drop stop" mounting
- Surge protection
- Designed to overcome residual magnetism
- Up to 1,200lbf Holding Force (Each Electromagnet)
- Fail-Safe
General Information

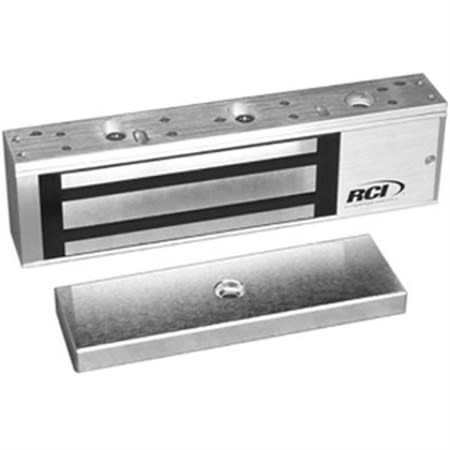

Name: RCI 8310 Single MultiMag Electromagnetic Lock, 1200 lb, 12/24VDC, Brushed Anodized Aluminum
Category: RCI by dormakaba, Access Control, Locking Devices, Magnetic Locks
UPC Code: 785943017659
Country of Origin: China. Country of origin is subject to change.
