The PAD100-PSSA (Single Action) is activated by simply pulling the white "T" bar handle down. The PAD100-PSDA (Dual Action) is activated by lifting the front cover and then pulling the white "T" bar handle down. Once activated, the "T" bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the "T" bar back into the normal position and re-secure the front cover.
Main Features
- Single or Dual Action versions
- Durable die-cast construction
- Reset key matches the fire alarm control panels
- Compatible with IPA Series panels
- SLC Class, Class X and Class B
- UUKL Listed for Smoke Control
General Information

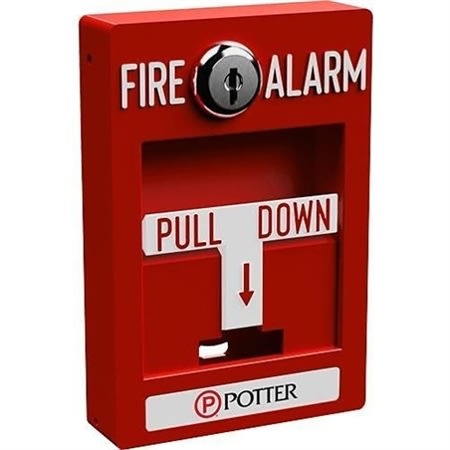

Name: Potter PAD100-PSDA Addressable Pull Station, Dual Action
Category: Potter Electric Signal, LLC, Fire, Fire Pull Stations, Dual Action Pull Stations
UPC Code: 78519202383
Country of Origin: . Country of origin is subject to change.
