The Potter Model PFC-4410G3 is a conventional multi-hazard releasing control panel well suited for a number of applications. The PFC-4410G3 is listed for use with pre-action and deluge sprinkler suppression systems and agent-based fire suppression systems. The panel utilizes a microprocessor-based system that has up to 35 standard programs in panel memory, which covers a majority of installations. The simple to follow Menu Structure programs the entire system in a matter of seconds. In addition to the Standard Programs, the panel allows custom programming to accommodate any installation. Programming is accomplished either through the menu driven on-board controls or from a laptop via the Ethernet connection.
Main Features
- Multi-Hazard Capability
- Seven programmable Class B Initiating Circuits
- Four Class B Output Circuits
- Programmable Cross Zoning including AND/OR capability
- Supervised Microprocessor
- Integrated Battery Meter
- On Board Menu Driven Programming Controls
- Releasing Circuits Protected From False Activation
- 4000 Event History Buffer
- Walktest with Automatic Time-out
General Information

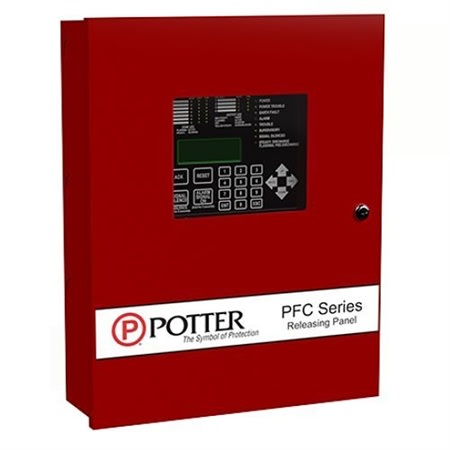

Name: Potter PFC-4410G3 Releasing Control Panel
Category: Potter Electric Signal, LLC, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 785192028758
Country of Origin: United States. Country of origin is subject to change.
