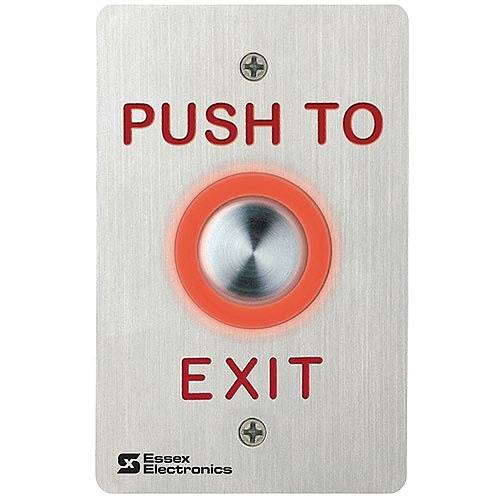

Essex PEB-2S PEB Series Single Gang Piezoelectric "Push to Exit" Switch, Stainless Steel Faceplate

Essex PEB Series Piezoelectric Switches are industrial grade illuminated, stainless steel, timed electronic switches designed to operate in various high use, harsh and vandal prone environments. Suitable for both indoor and outdoor commercial applications, the PEB Series features a unique selectable, bi-colored illumination status. Brilliant red, vibrant green or no illumination can be selected to show Relay ON or Relay OFF status. Illumination can also be controlled externally. The PEB Series can be used to control an automatic door, electric lock/strike or magnetic lock. It can also be tied into the remote bypass (REX – request to exit) input of an access control system or used to shunt an alarm system to allow egress from a secured area.

Main Features

• Essex proprietary Piezoelectric Switch Technology
• Superior Vandal Resistance
• All-Weather Design IP66 Rated
• Two Outputs (1 Normally Open and 1 Normally Closed)
• 12-24VDC
• Adjustable 1 to 40 second output time
• Epoxy encapsulated electronics
• Limited Lifetime Warranty
• UL 294 Access Control Line Security 1
• Single Gang faceplate PUSH TO EXIT graphics

General Information

Name: Essex PEB-2S PEB Series Single Gang Piezoelectric "Push to Exit" Switch, Stainless-Steel Faceplate

Category: Essex Electronics, Access Control, Egress Devices & Alarms, Door Release Buttons

UPC Code: 666272109591

Country of Origin: United States. Country of origin is subject to change.
